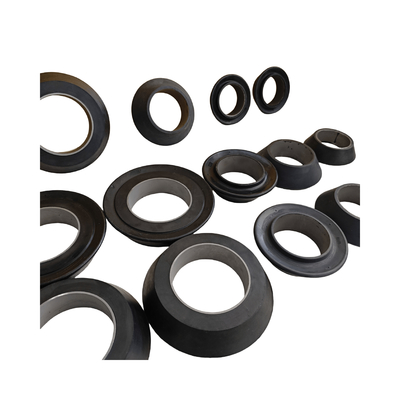

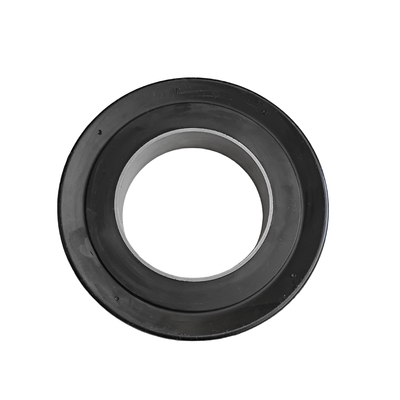

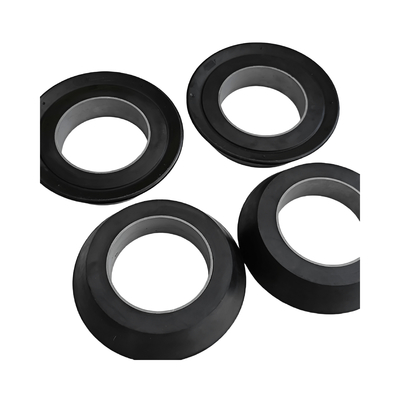

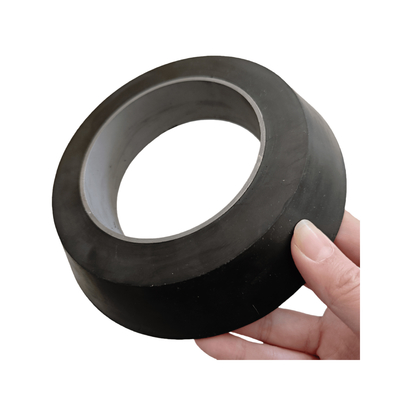

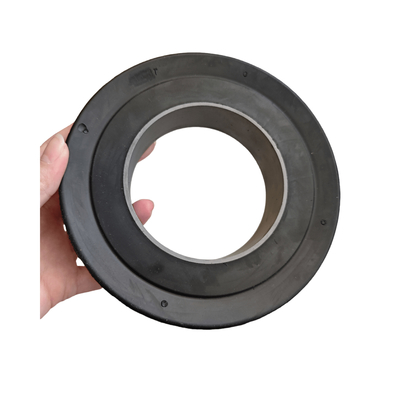

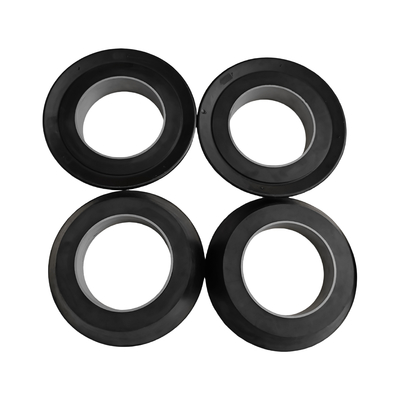

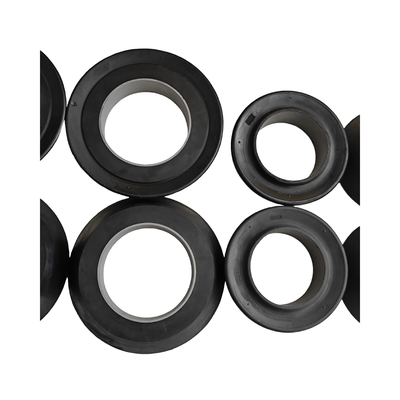

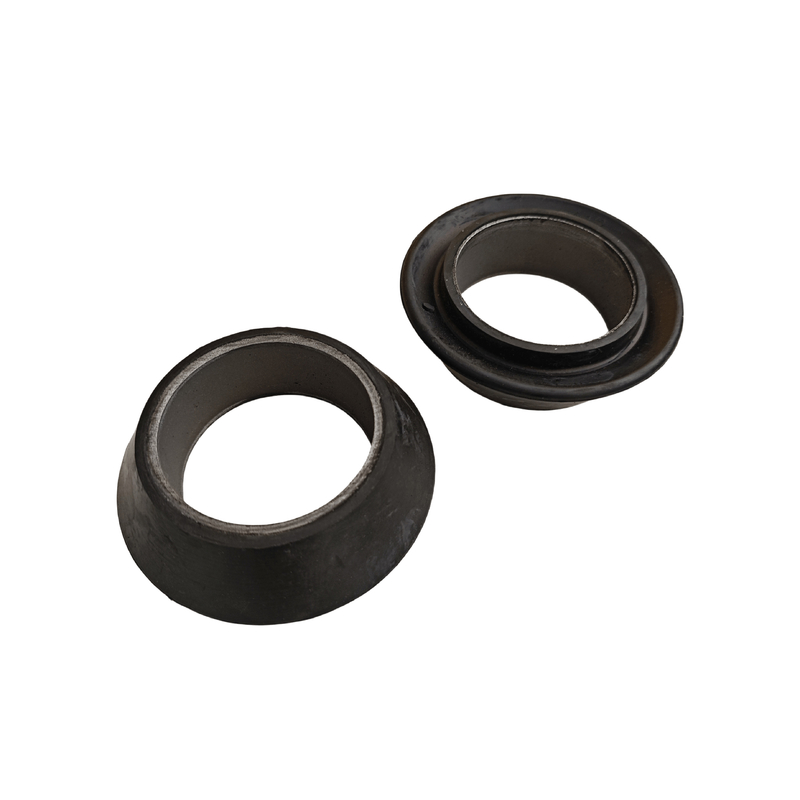

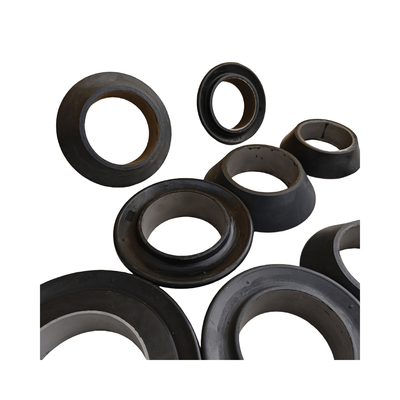

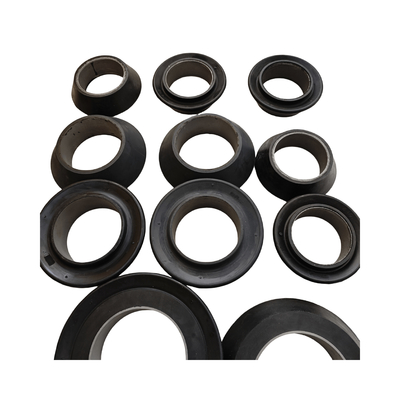

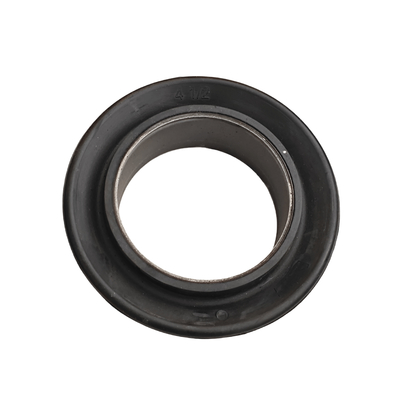

V Series Swab Cup for Sand-Laden Fluids:
Shanghai Qinuo offers the V Series Swab Cup, available in both light-duty and heavy-duty all-rubber configurations. This model is specifically designed for use in wells containing fluids with high concentrations of suspended sand and abrasive particles. The upturned lip design enables the cup to pass smoothly through tight tubing or casing restrictions and allows it to invert automatically to discharge excessive loads, preventing overpressure or plugging during swabbing operations.
Manufactured from our special Frac Fluid rubber compound, this cup delivers excellent abrasion resistance, superior tensile strength, and remarkable chemical stability when exposed to harsh downhole fluids. These properties make the V Series ideal for maintaining efficient fluid removal, improving well productivity, and reducing maintenance downtime. The number of cups per mandrel can be adjusted depending on well depth, fluid viscosity, and load requirements. Qinuo’s V Series Swab Cups are precision molded to ensure consistent sealing performance, long service life, and reliability under demanding oilfield conditions.
| Normal size(In) |
OD(In/mm) |
ID(In/mm) |
Core and Description |
Weight(g) |
| 4 1/2 |
4.062/103.17 |
2.420/61.47 |
Steel Core Swab Cup |
137 |
| 5 1/2 |
4.970/126.24 |
2.920/74.17 |
Steel Core Swab Cup |
320 |
| 7 |
6.475/164.47 |
3.545/90.04 |
Steel Core Swab Cup |
560 |
Our Swab Cups are produced from a newly developed rubber in the popular Guiberson* profile in either a nitrile or Frac Fluid compound. These cups can also be produced in other specified materials. Our cups are designed for durability and perform under the toughest conditions.
ISO9001: 2015 & SGS certificate:
Shanghai Qinuo Industry Co., Ltd, founded in 2013, has more than a decade of experience in producing and supplying rubber fittings for the oil and gas industry. With annual sales exceeding $10 million and a strict ISO9001 quality system, our wholly owned Nantong Ruowei Seal factory is equipped with 30+ vulcanizing machines and advanced facilities. We manufacture over 20 types of seals, O-rings, and customized rubber components for demanding applications. With a monthly capacity of over 40 tons, our products are trusted by customers in more than 100 countries worldwide.
Available types of Swab cups:
TA style:
TA is a medium load Swab Cup built around a steel or aluminum bushing for use in most sizes of tubing or drill pipe. When under load, it will compress to form a solid rubber mass for maximum lifting capacity and minimum wear. Manufactured from a newly developed rubber compound, these cups provide our customers with a high quality North American product. Our special Frac Fluid compound is developed for the ultimate in durability and performance. These Frac Swab Cups are designed to perform under the toughest conditions.
V style:
Shanghai Qinuo carries the V Series Swab Cup in a light duty and heavy duty all rubber cup that is suited for use in fluids with high concentrations of suspended sand. The upturned lips pass easily through tight spots and will invert to dump excessive loads. The number of cups used will vary with conditions.Our special Frac Fluid compound has excellent abrasion resistance high tensile strength and outstanding resistance to chemical attack.
